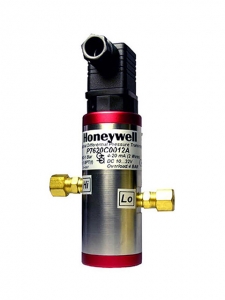

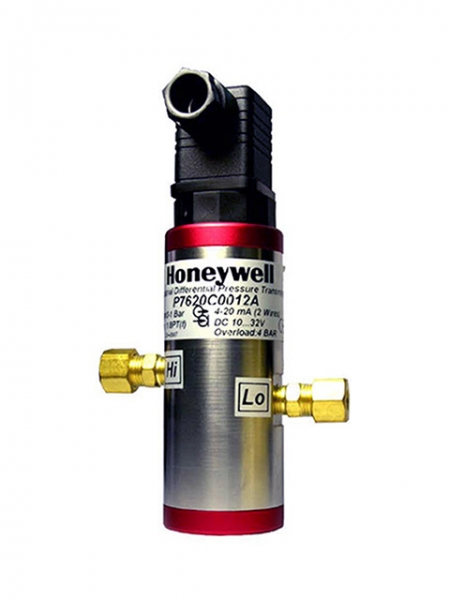

P7620C系列 水差壓傳訊器
•水差壓傳訊器
•壓力範圍:0~25 Bar
•訊號輸出:4-20mA 或 0-10V
•準確度:0.5% F.S.
•操作溫度範圍:-25~85℃

輸出訊號4-20mA

型號 Range Max pressure in one side port FS/℃ Output
P7620C0010A 0~1 Bar H-Port<2 Bar, L-Port<2 Bar TC-0<0.04% 4-20mA
P7620C0012A 0~1 Bar H-Port<4 Bar, L-Port<4 Bar TC-0<0.08% 4-20mA
P7620C0016A 0~1.6 Bar H-Port<3.2 Bar, L-Port<3.2 Bar TC-0<0.04% 4-20mA
P7620C0018A 0~1.6 Bar H-Port<10 Bar, L-Port<10 Bar TC-0<0.08% 4-20mA
P7620C0025A 0~2.5 Bar H-Port<5 Bar, L-Port<5 Bar TC-0<0.04% 4-20mA
P7620C0027A 0~2.5 Bar H-Port<10 Bar, L-Port<10 Bar TC-0<0.08% 4-20mA
P7620C0040A 0~4 Bar H-Port<8 Bar, L-Port<8 Bar TC-0<0.04% 4-20mA
P7620C0042A 0~4 Bar H-Port<20 Bar, L-Port<20 Bar TC-0<0.08% 4-20mA
P7620C0060A 0~6 Bar H-Port<12 Bar, L-Port<12 Bar TC-0<0.04% 4-20mA
P7620C0062A 0~6 Bar H-Port<20 Bar, L-Port<12 Bar TC-0<0.08% 4-20mA
P7620C0100A 0~10 Bar H-Port<20 Bar, L-Port<12 Bar TC-0<0.04% 4-20mA
P7620C0160A 0~16 Bar H-Port<32 Bar, L-Port<12 Bar TC-0<0.04% 4-20mA
P7620C0250A 0~25 Bar H-Port<50 Bar, L-Port<12 Bar TC-0<0.04% 4-20mA




輸出訊號 0~10V

型號 Range Max pressure in one side port FS/℃ Output
P7620C0010B 0~1 Bar H-Port<2 Bar, L-Port<2 Bar TC-0<0.04% 0-10V
P7620C0012B 0~1 Bar H-Port<4 Bar, L-Port<4 Bar TC-0<0.08% 0-10V
P7620C0016B 0~1.6 Bar H-Port<3.2 Bar, L-Port<3.2 Bar TC-0<0.04% 0-10V
P7620C0018B 0~1.6 Bar H-Port<10 Bar, L-Port<10 Bar TC-0<0.08% 0-10V
P7620C0025B 0~2.5 Bar H-Port<5 Bar, L-Port<5 Bar TC-0<0.04% 0-10V
P7620C0027B 0~2.5 Bar H-Port<10 Bar, L-Port<10 Bar TC-0<0.08% 0-10V
P7620C0040B 0~4 Bar H-Port<8 Bar, L-Port<8 Bar TC-0<0.04% 0-10V
P7620C0042B 0~4 Bar H-Port<20 Bar, L-Port<20 Bar TC-0<0.08% 0-10V
P7620C0060B 0~6 Bar H-Port<12 Bar, L-Port<12 Bar TC-0<0.04% 0-10V
P7620C0062B 0~6 Bar H-Port<20 Bar, L-Port<12 Bar TC-0<0.08% 0-10V
P7620C0100B 0~10 Bar H-Port<20 Bar, L-Port<12 Bar TC-0<0.04% 0-10V
P7620C0160B 0~16 Bar H-Port<32 Bar, L-Port<12 Bar TC-0<0.04% 0-10V
P7620C0250B 0~25 Bar H-Port<50 Bar, L-Port<12 Bar TC-0<0.04% 0-10V



相關檔案
P7620C with LED (2013.12)-watermark
